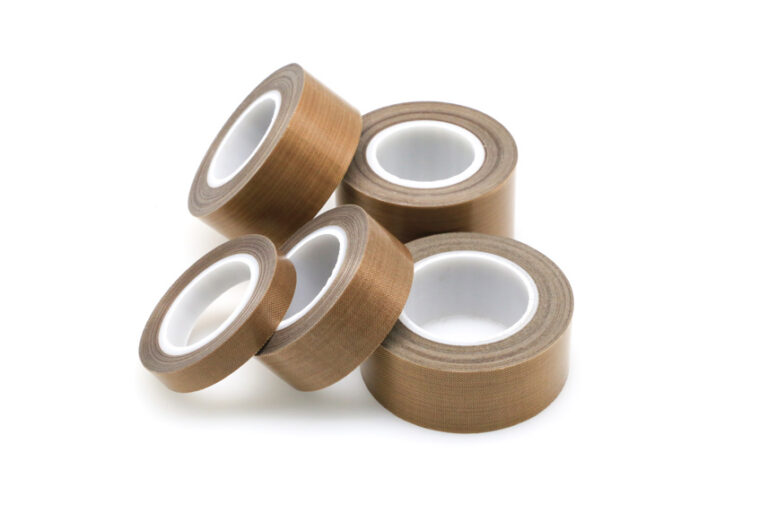

PTFE ADHESIVE TAPES
COATEX produces an extensive selection of PTFE coated fiberglass and PTFE Film Pressure-Sensitive Tapes catering to diverse industries including flexible packaging, plastics, electronics, wind energy, and composite molding. Engineered with a range of coating formulas, these tapes are tailored to meet the unique requirements of different applications. The COATEX PTFE tape series offers exceptional features such as high heat resistance, dimensional stability, robust tensile strength, and excellent resistance to chemicals and abrasion. Our PTFE tapes are offered with backing options of high temperature silicone or acrylic adhesives to suit various needs.
Silicone Pressure Sensitive Adhesives are ideal for application on heated surfaces due to their ability to withstand continuous operating temperatures spanning from -100°F to 500°F (-70°C to 260°C). These adhesives serve as superb release surfaces and are well-suited for applications necessitating high temperatures, electrical resistance, fire retardancy, and mechanical robustness.
ACRYLIC PRESSURE SENSITIVE ADHESIVES exhibit strong initial adhesion due to their high tackiness. They offer improved resistance to solvents and are effective within a specific temperature range of -100°F to 350°F (-70°C to +170°C).
PREMIUM Series PTFE (or PSA) tapes are ideal for the most demanding non-stick applications. These tapes have the highest PTFE-to-substrate ratio in their series.
| PTFE Adhesive Fabric Premium Series | ||||||
| Style | Standard Width(mm) Please ask for other widths | Backing Thickness (mm) | Total Thickness (mm) | Weight (g/m2) | Adhesive (N/cm) | Tensile Strength Warp/Fill (N/cm) |
| YS7008AJ | 1000,1250 | 0.08 | 0.13 | 155 | 4.4 | 104/98 |
| YS7013AJ | 1000,1250 | 0.13 | 0.18 | 270 | 5.4 | 240/200 |
| YS7015AJ | 1000 | 0.15 | 0.2 | 316 | 5.6 | 240/200 |
| YS7018AJ | 1000 | 0.18 | 0.23 | 370 | 5.6 | 320/302 |
| YS7020AJ | 1000 | 0.2 | 0.25 | 410 | 5.7 | 280/256 |
| YS7025AJ | 1000 | 0.25 | 0.3 | 530 | 6 | 460/400 |
| YS7030AJ | 1000 | 0.3 | 0.35 | 625 | 6.2 | 680/640 |
INDUSTRIAL Series PTFE (or PSA) tapes are preferred in applications where low-cost is chosen above maximum performance due to less resilient working environment. These tapes have the most economical and sufficient PTFE-to-substrate ratio in their series.
| PTFE Adhesive Fabric Industrial Series | ||||||
| Style | Standard Width(mm) Please ask for other widths | Backing Thickness (mm) | Total Thickness (mm) | Weight (g/m2) | Adhesive (N/cm) | Tensile Strength Warp/Fill (N/cm) |
| YS7010W | 1000,1250 | 0.1 | 0.15 | 200 | 5.4 | 240/200 |
| YS7011A | 1000,1250 | 0.11 | 0.16 | 210 | 5.4 | 240/200 |
| YS7011AJ | 1000,1250 | 0.11 | 0.16 | 220 | 5.4 | 240/200 |
| YS7013AJ | 1000,1250 | 0.12 | 0.17 | 250 | 5.4 | 235/215 |
| YS7023AJ | 1000 | 0.23 | 0.28 | 500 | 5.8 | 420/360 |
The ANTI-STATIC SERIES is designed to effectively prevent the accumulation of static electricity on surfaces in various applications. These tapes are coated with varying levels of PTFE to cater to the distinct performance needs of different industries.
| PTFE Adhesive Fabric Anti Static Series | ||||||
| Style | Standard Width(mm) Please ask for other widths | Backing Thickness (mm) | Total Thickness (mm) | Weight (g/m2) | Adhesive (N/cm) | Tensile Strength Warp/Fill (N/cm) |
| YS7008BJ | 1000,1250 | 0.08 | 0.15 | 155 | 4.4 | 104/98 |
| YS7011BJ | 1000,1250 | 0.11 | 0.16 | 220 | 5.4 | 240/200 |
| YS7012BJ | 1000,1250 | 0.12 | 0.17 | 250 | 5.4 | 235/215 |
| YS7013BJ | 1000,1250,1500 | 0.13 | 0.18 | 270 | 5.4 | 240/200 |
| YS7018BJ | 1000,1250,1500 | 0.18 | 0.23 | 370 | 5.6 | 320/302 |
| YS7023BJ | 1000,1250,1500 | 0.23 | 0.28 | 500 | 5.8 | 420/360 |
| YS7025BJ | 1000,1250,1500 | 0.25 | 0.3 | 530 | 6 | 460/400 |
The PTFE HIGH MODULUS FILM ADHESIVE TAPES are adhesive tapes featuring an orange-colored PTFE film base. These tapes provide exceptional resistance to intense heat and chemicals, alongside electrical capabilities. Such attributes render these tapes exceptionally well-suited for challenging tasks like roll wrapping, creating endless belts for Polyethylene laminators, coil insulation, and a variety of other demanding applications.
| PTFE High Modulus Film Adhesive Tapes | ||||
| Style | Backing Thickness (mm) | Total Thickness (mm) | Tensile Strength (N/5cm) | Dielectric strength(KV) |
| YS7905-HM | 0.03 | 0.05 | 260 | 9 |
| YS7907-HM | 0.05 | 0.07 | 350 | 11 |
| YS7908-HM | 0.06 | 0.08 | 380 | 13 |
| YS7910-HM | 0.08 | 0.1 | 410 | 15 |
The PTFE FILM ADHESIVE TAPES WITH HIGH ELONGATION are electrical insulating tapes constructed with a PTFE film base. Renowned for their outstanding electrical properties, low friction coefficient, and resilience to heat and chemicals, these tapes are the top choice for applications like heat-sealing, heat-resistant masking, and electrical insulation needs.
| PTFE Film Adhesive Tapes With High Elongation | |||||
| Style | Backing Thickness (mm) | Total Thickness (mm) | Tensile Strength (N/5cm) | Dielectric strength(KV) | Percentage of elongtation (%) |
| YS7905 | 0.03 | 0.05 | 50 | 4 | 200 |
| YS7908 | 0.05 | 0.08 | 250 | 6.5 | 150 |
| YS7908B | 0.05 | 0.08 | 250 | Anti-Static | 100 |
| YS7910 | 0.065 | 0.1 | 270 | 8 | 150 |
| YS7913 | 0.08 | 0.13 | 300 | 13 | 150 |
| YS7918 | 0.125 | 0.18 | 250 | 13 | 350 |
| YS7923 | 0.17 | 0.23 | 350 | 16 | 250 |
| YS7950 | 0.35 | 0.5 | 420 | 25 | 250 |
FINDING THE RIGHT PRODUCT
Our sales team works diligently with each client to ideally match the right type and grade of fabric to the client’s unique production needs. Our products are customized to match our customers’s specific needs. They can be supplied as sheets, rolls, belts or as fabricated customized components.
